DRAGONFLY

MODULE SPECIFICATION SHEET

Professional Grade Permanent Outdoor Lighting System

12V DC Power
20 Gauge Wire
5 Year Warranty
3000K-7200K Temperature
IP68 Waterproof
72 Lumens/Module

TECHNICAL FEATURES

SpecLED Type
ValueSMD5050
SpecConformity
ValueCE, ROHS, UL
SpecLED per Module
Value3
SpecModule Dimension
ValueΦ30mm
SpecLED - Driving Method
ValueConstant Voltage Driver Integrated
SpecProduct Warranty
Value5 Years
SpecModule QTY/String
Value1pc/string
SpecWorkmanship Warranty
Value1 Year
SpecLife Span: White
Value50,000 h
SpecN. of Consecutive Modules Connected
ValueUnlimited

TECHNICAL OPERATING DATA

ParameterOperating Temperature
Value-25°C ~ +60°C
ParameterStorage Temperature
Value-30°C ~ +70°C
ParameterOperating Voltage
ValueDC 12V
ParameterIP Degree
ValueIP68
ParameterPower Consumption / Module
Value0.96W
ParameterRated Current / Module
Value80mA
ParameterChain Can Be Subdivided
ValueEvery 1 Module
ParameterRadiance Angle
Value120°

CONTROL UNIT

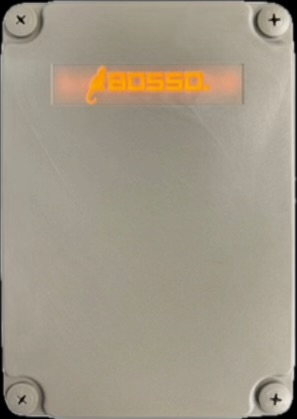

Dragonfly Control Unit - Exterior

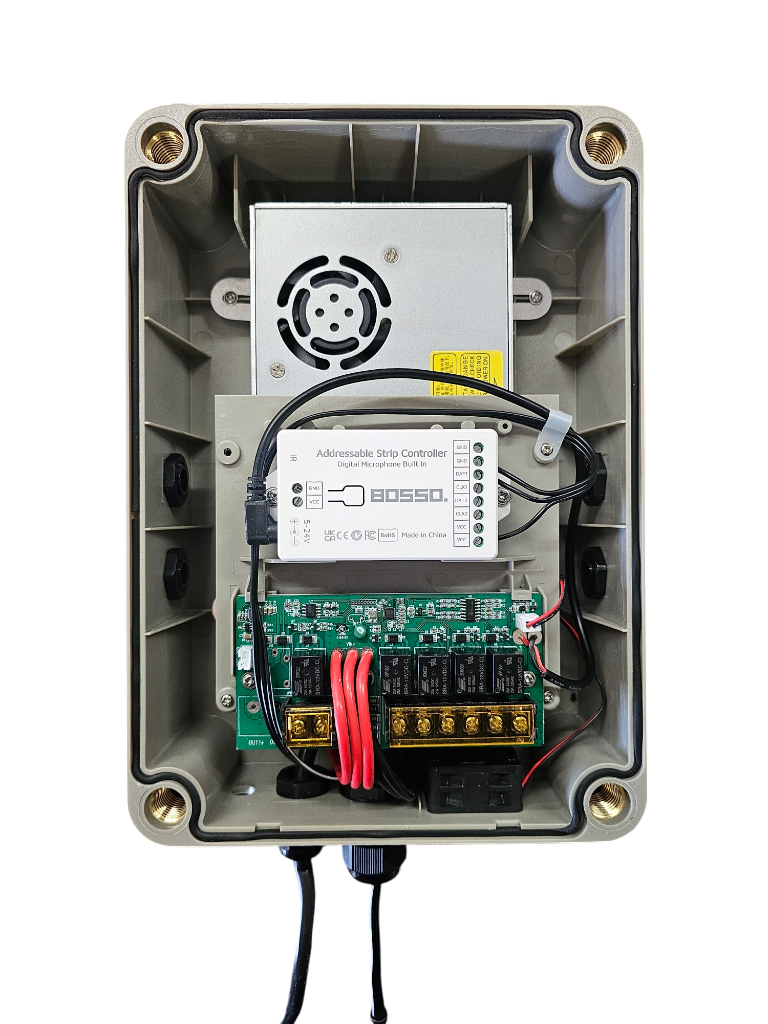

Dragonfly Control Unit - Interior

Controller Specifications

  • •Powerful & Efficient: 12V power supply
  • •ESP32 controller for seamless operation
  • •Powers up to 300 lights
  • •1 controller per 1,000 lights
  • •Built-in Safety: 2 fuses for added protection
  • •Certified Quality: UL, ROHS, CE rated
  • •Class 2 Rated for safe and reliable operation
  • •Dimensions: 11.5" x 8.1" x 4.1"
